2d camera Icon 2D Camera

With 2D animation, it is usually easier to animate the positions of 2D layers than to set up a 3D space using cameras to create camera movements.

The 2D Multiplane camera tool creates virtual 2D cameras to easily animate all types of camera movements, using only 2D layers.

Setup

  1. Click on the 2D Camera button. Duik creates a couple of null objects and a camera controller on top of the composition. You can duplicate the null objects to add more planes to the setup.
  2. Parent the background layers to the null objects
  3. Animate the position of the camera controller to create standard dollying, the other movements can be animated using the effect on the controller.

Camera Influence

The Camera Influence, as the name suggests, indicates how much of an impact the camera controller (designated as “L02 CAMERA”) has on that null layer.

Camera Influence can be found in the effects of the generated or duplicated nulls. A common use case for these nulls would be to view them as planes, or “depths”. L02’s camera influence will always be 100% as it is the camera controller itself. The other null objects are essentially relative children of L02.

Example

Let’s say we want to create the illusion of three dimensional space that has a main focus on the objects in the middleground (mg).

You have a foreground (fg) layer, an mg layer, and a background (bg) layer.

You would parent your mg layer to L02 since it is your primary object, the bg to L01, and the fg to L03.

From here, you can set the camera influence of L01 (bg) to a number with a value lower than 100 (the default is 66.67%) and the camera influence of L03 (fg) to a value greater than 100 (default: 120.0%).

Now when you manipulate the controller, the background will move 66.67% that of the mg and the fg will move 20% more than the mg, giving the illusion of depth/parallax.

Warning

Duik will create a null called ZERO along with the 2D Camera, just ingore it and don’t try to modify, duplicate or move it. It’s needed to give the camera control it’s anchor point and some other calculations but you should not have to manipulate it by yourself.

Effect

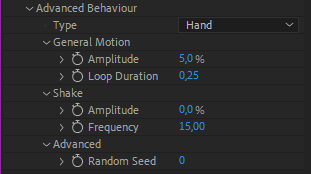

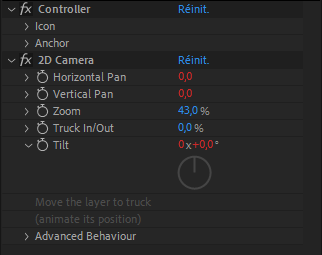

2d camera effects 2d camera effects advanced
