Pins

Pins are a very simple yet extremely useful tool. They are layers used to control any spatial property or Bézier shape. This is a quick way to parent these properties or any vertex of a Bézier path to any other layer for example.

Duik Pins are the easiest way to rig a character using the After Effects Puppet tool or Bézier paths; you’ll just need to add Duik pins to the puppet pins or Bézier paths, and parent them to the armatures like you would for any other layer.

Creation

1. Select the properties.
2. Click on the Add Pins button.
   • Maintaining the [Alt] key will create controls for the tangents when adding pins on a Bézier path.

Spatial properties and puppet pins

This video is part of the official comprehensive video course about Duik Ángela

You can control any spatial (multi-dimensional) property with pins, and all types of puppet pins.

Pins to control: standard spatial property, Puppet position pin, Puppet Advanced pin, Puppet bend pin.

Standard pins and Puppet position pins control the location of the property they’re linked to; Puppet bend pins control the rotation; Puppet advanced pins also control the rotation and the scale of the After Effects puppet pin.

Bézier paths

This video is part of the official comprehensive video course about Duik Ángela

You can use Duik pins to control all Bézier paths (masks or shape layers).

A Bézier path controlled with Duik pins.

By default, Duik won’t create pins to control the tangents, but the tangents can still be controlled by rotating and scaling the pins for the main points.
You can hold the [Alt] key when click the Add Pins button to force Duik to create layers for the tangents instead. These layers are still parented to the main points, so rotating and scaling them still works.
By default, these tangents are locked together, but they can be unlocked with a checkbox control in the main point effects.

Bézier path pins and tangent pins can be removed or re-created at any time; this is a way to make the composition lighter with less layers, by using only the needed pins and tangent pins.
To re-create a pin for an already rigged Bézier path, select the corresponding property in the effects of the layer containing the Bézier path, then click again on the Add Pins button.

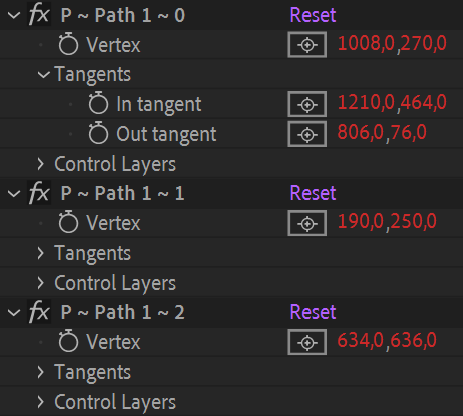

The effects on the layer containing a rigged path allow you to easily re-create missing pins to control the path, or manually adjust the values.

Edit pins

An effect on each pin can be used to adjust their appearance.

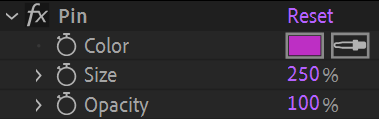

An effect to control the pin appearance.

You can also change the settings of multiple pins together using the additional panel of the Add Pins button.

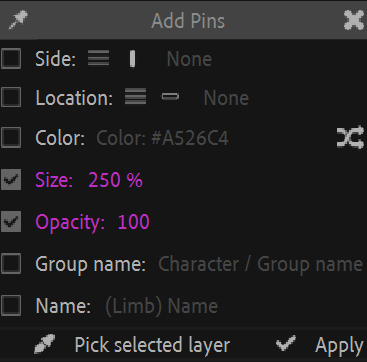

Edit multiple pins using the additional panel.
