Tweening

This video is part of the official comprehensive video course about Duik Ángela

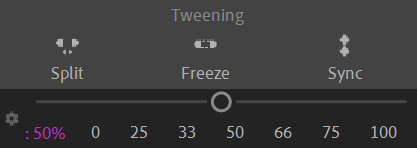

The first part of the animation panel is made of some tweening tools, especially, but not only, useful during the usual first steps of the animation process, blocking*, when animating with hold keyframes¹.

A cel from the animated film The Sinking of the Lusitania,
Winsor McCay, 1918
Public domain.

Split keyframe

To ensure you’ll keep a fixed part in the animation on a specific keyframe, you can split it: this tool duplicates the keyframe so there’s twice the same keyframe at that time. This makes sure there will be a frozen time around the original keyframe time.

1. Select some keyframes.
2. Click the Split button.

Original

Result

You can tweak the way keyframes are split in the additional panel, with [Shift] + [Click] on the Split button.

The duration sets the time between the two resulting keyframes, in frames.

You can also set the new keyframes alignment in the timeline, relative to the original keyframe:

The selected keyframe, before it is split

• Center

• After

• Before


Freeze pose

This tool freezes the previous (or next) pose until the current time, by copying the previous (or next) keyframe of the animated properties.

1. Select the animated layers.
2. Click the Freeze button.
   [Alt] + [Click] to freeze the next pose instead of the previous one.

Original

Result

You can tweak the way the pose is frozen in the additional panel, with [Shift] + [Click] on the Freeze button.

By default, Duik freezes all animated properties it’ll find, but you can set it to only freeze explicitely selected properties if you prefer.

By default, Duik works only with selected layers, but you can tell it to use all layers; in this case it’ll freeze all animations in the composition, no matter the selection. Be careful, this may be a bit long if there are a lot of animated properties.

Synchronize keyframes

This tool synchronizes all the selected keyframes at the current time.

1. Select some keyframes
2. Click the Sync button.
   [Alt] + [Click] to sync at the last keyframe instead of the first (in case there are multiple selected keyframes on the same property).

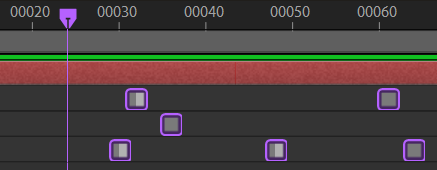

Original

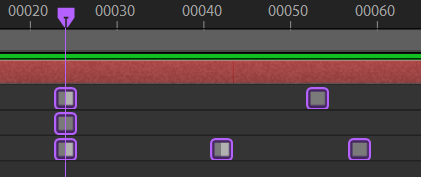

Result

If there are multiple keyframes selected on the same property, the animation is offset so that the first (or last) keyframe is synchronized:

Original

Result

Tweening slider

The slider in the tweening section of the panel can be used to quickly and easily create breakdowns* between keyframes.

1. Select some properties
2. Change the slider value (either with the slider or the value buttons below it)

A new breakdown keyframe (pose) is created at the current time, with values in between the next and previous keyframes at a ratio corresponding to the slider value.
0 % sets the breakdown at the value of the previous keyframe, 100 % sets the breakdown at the value of the next keyframe.

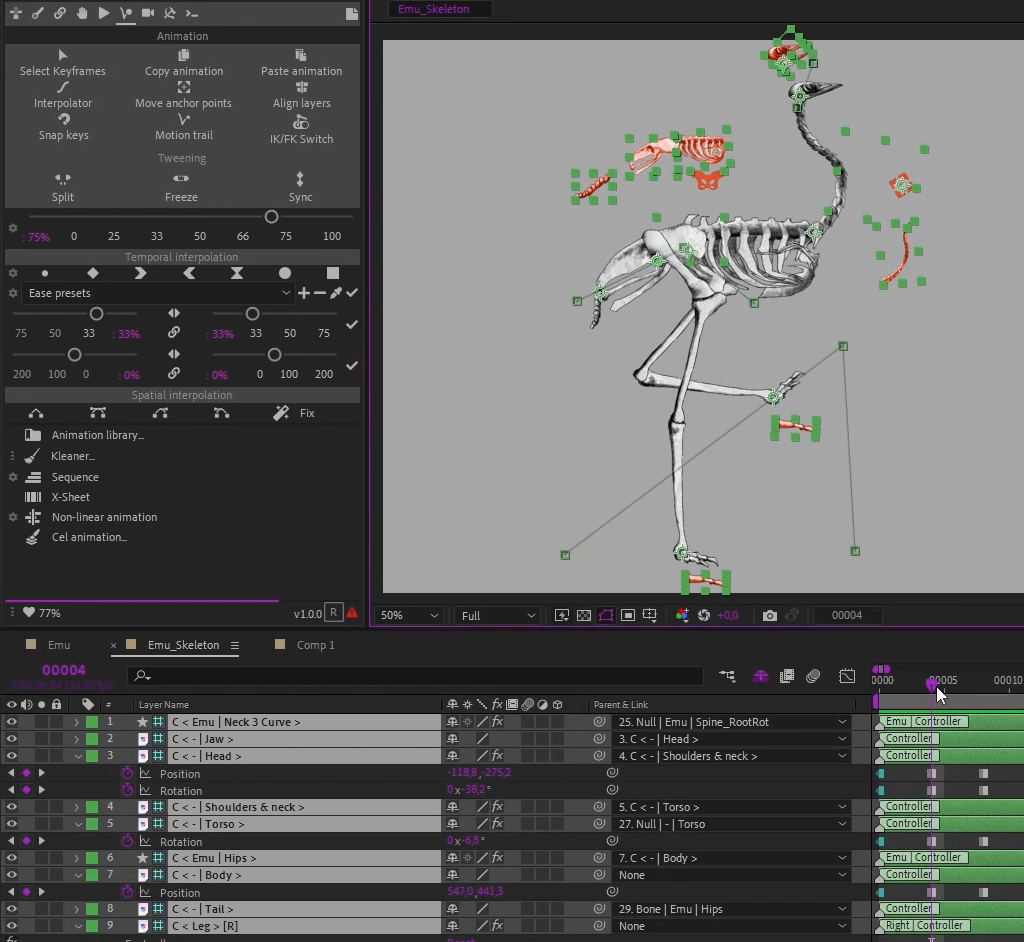

A 75 % breakdown: you can see on the trajectory of the eft leg (and other controllers) the breakdown being at 75 % between the two extreme poses.
This is true for all animated properties like rotations and all other values.

You can tweak the way the tweening slider works in the additional panel, click the options button.

By default, Duik freezes all animated properties it’ll find, but you can set it to only freeze explicitly selected properties if you prefer.

By default, Duik works only with selected layers, but you can tell it to use all layers; in this case it’ll freeze all animations in the composition, no matter the selection. Be careful, this may be a bit long if there are a lot of animated properties.
