The Wheel automates the rotation of layers according to their translation1.

Design for Four Wheel Dog Cart, no. 3928,
Brewster & Co., Herman Stahmer, 1884
Public domain.

  1. Select the layers.
  2. Click the Wheel button

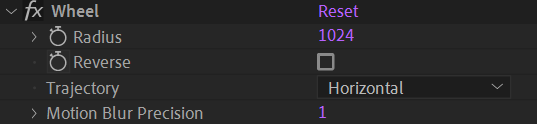

The Wheel can be adjusted in the effects of the layer.

The Radius is automatically set by Duik, but in some specific cases Duik may not be able to measure it accurately. In this case, you’ll have to set the correct value for the wheel to rotate at the right speed.


You can use the Measure Distance 2 tool to measure the distance between the anchor points of two layers. Use a null layer to measure the radius of the wheel.

If ever you need to animate a wheel rolling on the ceiling instead of the floor, check the Reverse option…

Set the Trajectory according to the type of trajectory followed by the wheel. Be careful, this can greatly reduce the performance.

When using the curved mode and you need motion blur, you may increase a bit the Motion Blur Precision value to fix motion blur artifacts, but be careful as this will make the performance drop drastically4.


  1. The formula to automate the rotation of a wheel is actually pretty simple: distance / radius gives the rotation angle in radians, (distance / radius) x 180 / π gives it in degrees.

  2. cf. Links and Constraints / Tools / Measure Distance

  3. Because there’s no way to reliably store any data with expressions in After Effects, Duik actually has to re-compute everything for each frame of the composition. This means that for each frame, it needs to add up all previous frame values. The total number of values to be computed for a given composition is a triangular number (see en.wikipedia.org/wiki/Triangular_number) given by the formula (f² + f) / 2 where f is the number of frames in the composition. Because of the in the formula, this number grows very fast with the duration of the composition.

  4. As stated above, the number of values to compute with a cumulative expression like the curved-trajectory wheel is a triangular number which grows fast with the number of frames in the composition. When you change the Motion Blur Precision, it’s the same as doubling, tripling, etc. the number of frames of the composition (the expression has to sub-sample the frames). When set to 2, that means the total number of values to be computed is ( (2f)² + 2f ) / 2 which is more than the double, 3, ( (3f)² + 3f ) / 2 is even worse, etc.
